A24-1309-Stainless Steel 1/8" NPT Pressure Transducer Sender Sensor For Oil Fuel Air Water 150PSI Pressure Senor

A24-1309-Stainless Steel 1/8" NPT Pressure Transducer Sender Sensor For Oil Fuel Air Water 150PSI Pressure Senor

12,000 OMR
12,000 OMR
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

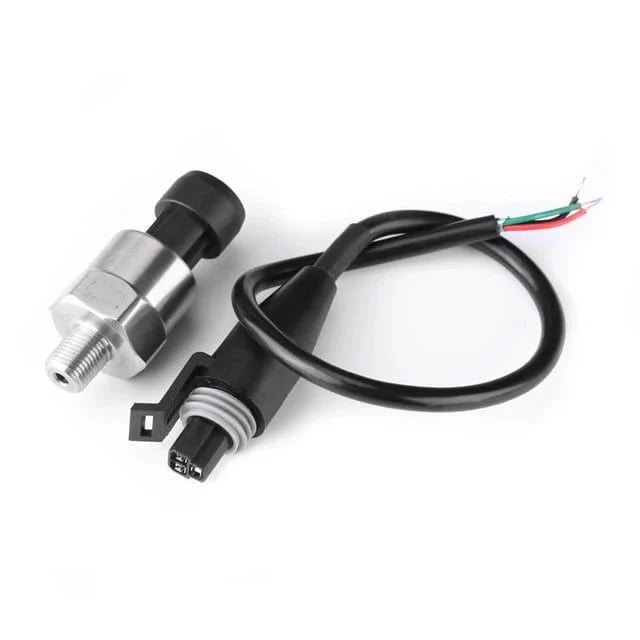

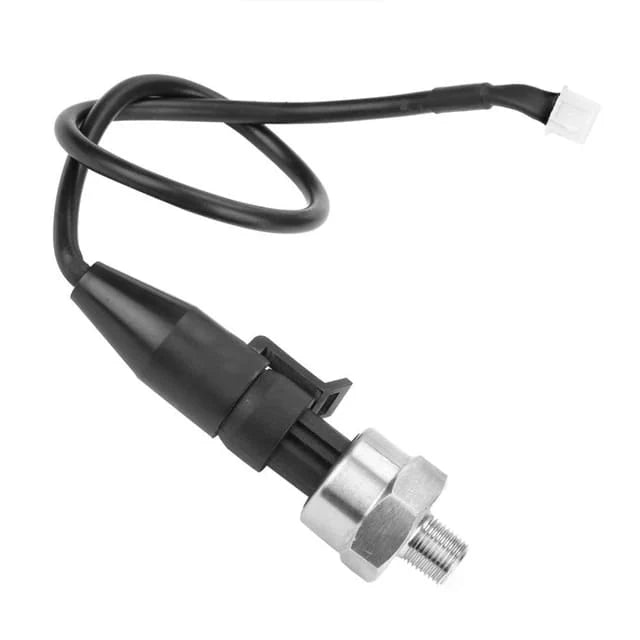

Stainless Steel 1/8" NPT Pressure Transducer Sender Sensor For Oil Fuel Air Water 150PSI Pressure Senor.

150 psi
Input: 0-150 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy: +/-0.5%FS
Thread: 1/8" NPT
Wiring: Red for +5V; Black for ground; Green for signal output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40℃~+120℃
Compensation Temperature: 0℃~+80℃
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃
Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1
