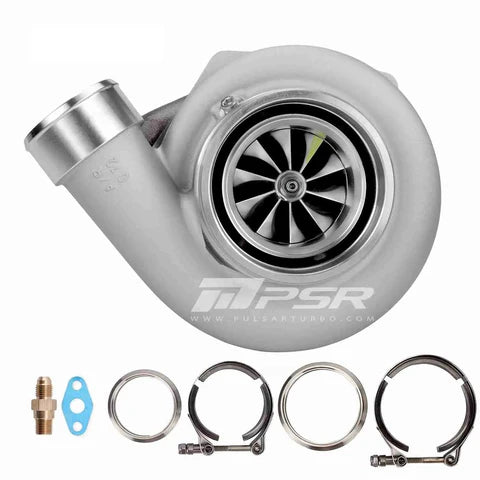

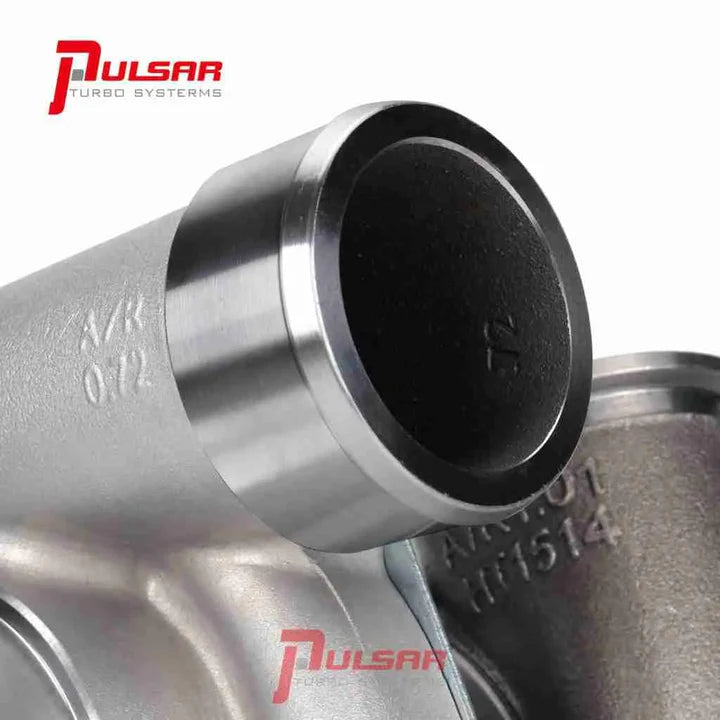

A24-2062-PSR3582 GEN2 Dual Ball Bearing Turbocharger STD MOD

Pulsar GTX3582R, DBB, Billet Comp. Wheel, 0.82A/R T4 Inlet

• Dual Ceramic Ball Bearing System
• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c Gen2 9 Blade Turbine Wheel

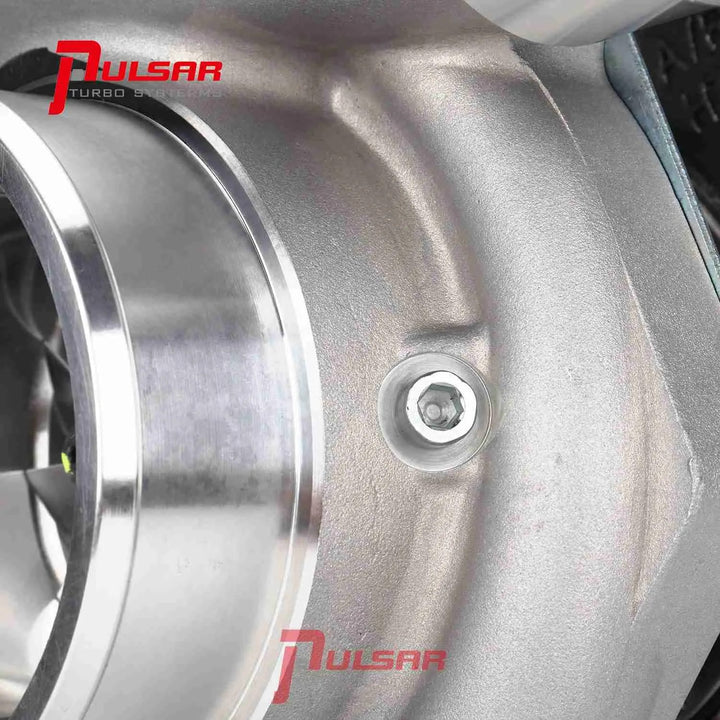

• Gen2 Cover Integrated with the Speed Sensor Port
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet etc. turbine housings in option
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP
• Horsepower rate: 450-900, Engine displacement range: 2.0L-4.5L

Description

• Compressor Wheel: 66*82mm
• Turbine Wheel: 68*62mm
• Compressor Inlet: 4.0 Hose
• Compressor Outlet: 2.5 Hose
• Turbine Inlet:  T4
• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5
