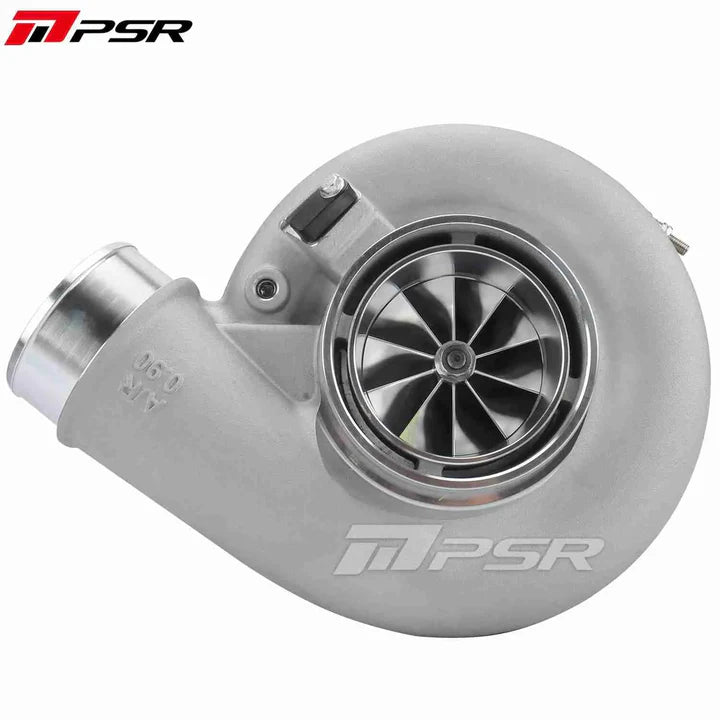

A24-2004-Pulsar G42-1450 COMPACT, DBB,.90A/R Cover,Billet Comp.Wheel-Standard-STD

PSR Forward Rotation 7975G COMPACT Dual Ball Bearing Turbocharger HP Rating 1450

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

• Description

  • Compressor Wheel: 79*98mm
  • Turbine Wheel: 82*75mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 3″ hose
  • Water Ports: -6AN
  • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange)
  • Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)

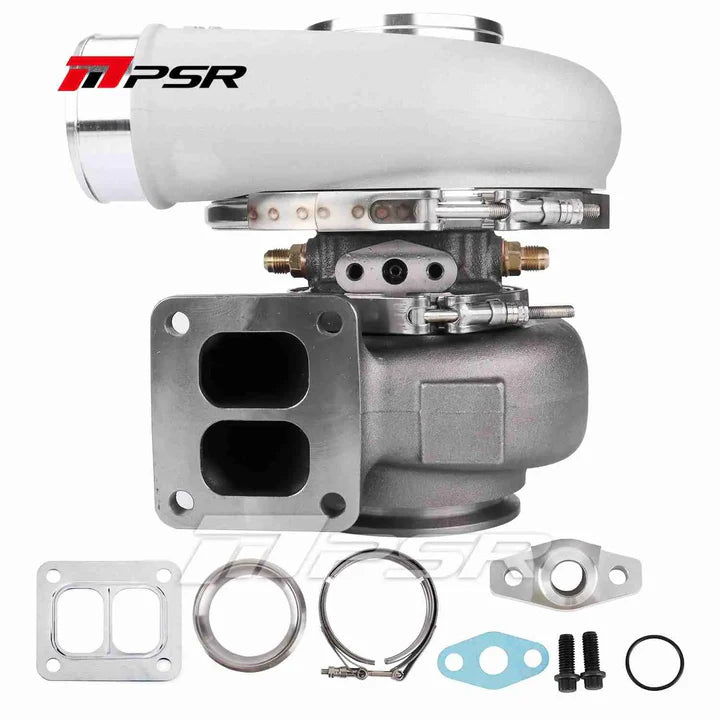

  Turbine housing option:

  1. T4(Divided) inlet, Vband outlet, 1.01 A/R
