A24-2068-Garrett GTX4088R Supercore

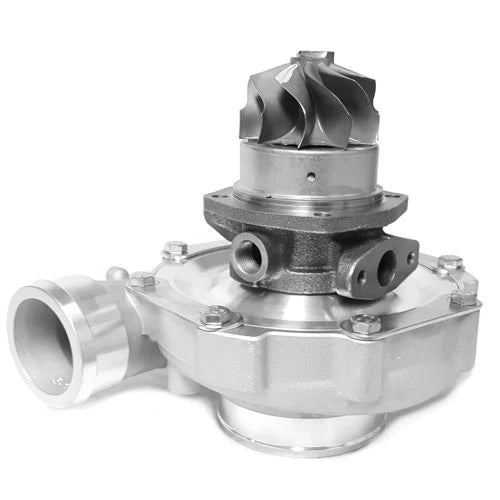

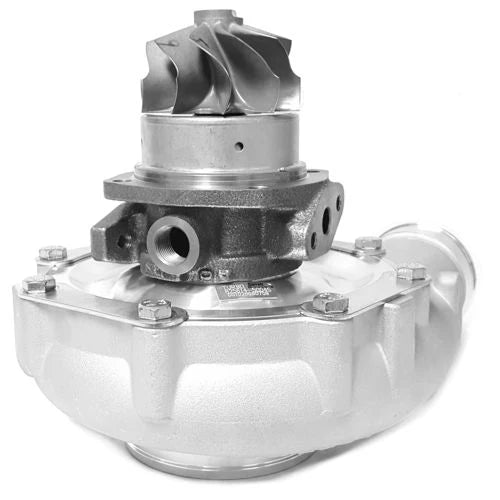

• Garrett GTX4088R supercore (turbo with turbine housing).

PRODUCT SPECIFICATIONS:

• Compressor Wheel Inducer: 65.0mm
• Compressor Wheel Exducer: 88.4mm
• Compressor Wheel Trim: 54
• Compressor Housing: .72 A/R T04H Frame with a 4" Inlet (Ported shroud anti surge) and 2.5" Outlet
• Turbine Wheel Inducer: 77.0mm
• Turbine Wheel Exducer: 68.0mm
• Turbine Wheel Trim: 78
