A24-2069-Garrett GTX3584RS GenII Turbo Vband AR .83

PRODUCT DESCRIPTION:

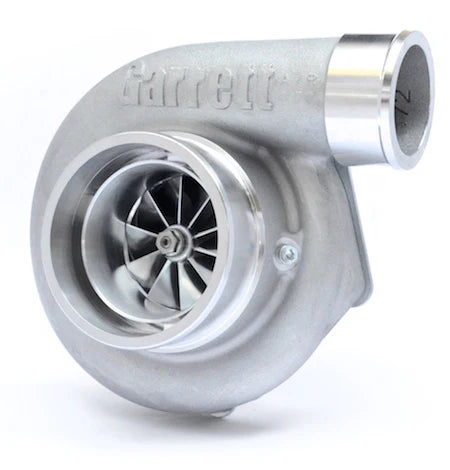

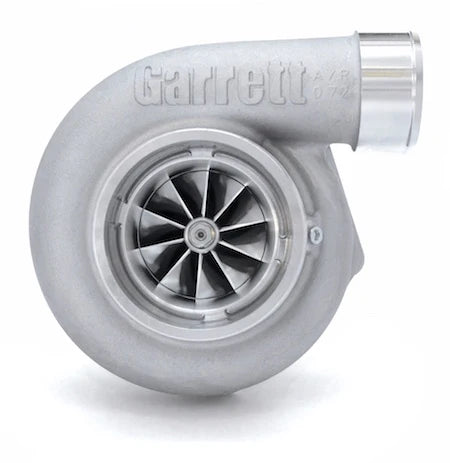

Garrett GTX3584RS dual ball bearing turbocharger with hose bead compressor outlet housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** Hose bead compressor housing outlet version **


PRODUCT FEATURES:

• Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
• Ultra high flow "RS" blade profile turbine wheel
• Dual ball bearing CHRA rotating assembly
• Compact package capable of 1,000HP

PRODUCT SPECIFICATIONS:

• Compressor Wheel Inducer: 67mm
• Compressor Wheel Exducer: 84mm
• Compressor Wheel Trim: 64
• Compressor Housing A/R: 0.72
• Compressor Housing Inlet: 4 inch diameter
• Compressor Housing Outlet: 2.5 inch diameter
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
•

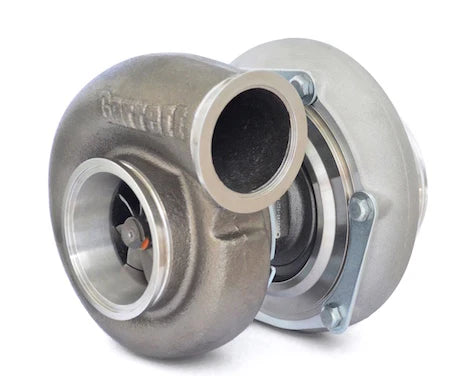

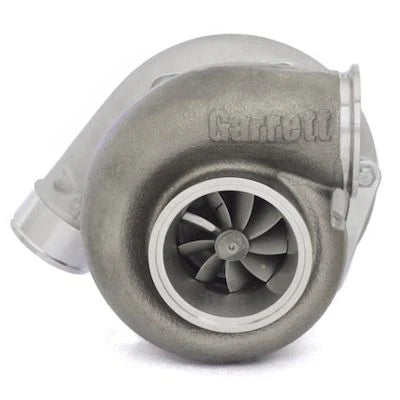

• TURBINE HOUSING OPTIONS:

• Garrett Stainless Steel V-Band Inlet/Outlet .83 A/R Product Code: ATP-HSG-340
• Garrett Stainless Steel V-Band Inlet/Outlet 1.01 A/R Product Code: ATP-HSG-341
• Garrett Stainless Steel V-Band Inlet/Outlet 1.21 A/R Product Code: ATP-HSG-343
• APPLICATION NOTES:

• The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
